5700 Series Pump Stroke Counters

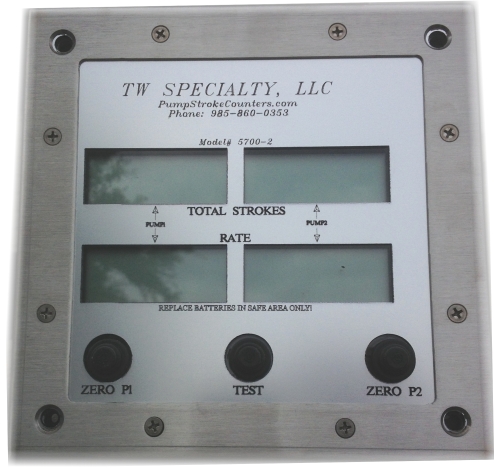

The 5700 series counters are controlled by microprocessors.  Each unit has a test button and will test the unit @ 60 SPM. The zero buttons are used to zero total stroke count for each pump. MAX RPM 500.



Ask about high speed models available up to 2400 RPM.





Download Manual





5700 Series Specifications:



PC BOARD FEATURES:

Embedded CPU [PIC12F683] ESD Protected Humiseal 1b31 protected

Large 1" x 2 1⁄2" LCD Displays

Auto Power On/Off

Auto Shutdown (Sleep Mode-after 5 minutes of no stroke unit will sleep) Push Button Reset Pump Strokes

Auto Clear SPM

Independent Pump Circuits

20ua Draw (Sleep Mode)

SPM ( 6 - 500 )

Count ( 0 - 9999 ) "rolls over to 0"

Input (Switch Dry Contact) or (TTL)

Operating Temperature (-10°C ~ 60°C)

No calibration needed for standard counters (barrel counters have calibration)



POWER:

Long Life Lithium/Duracell Batteries (4-AA)

Option DC (9-30vdc) for 12dc systems (truck rigs, pressure testing skids)



ENCLOSURE:

Stainless Steel Case (Nema 4x, IP65) by design. Standard 3-pin Plug (1&2 Pump) (3 Pump 4 pin) O-Ring sealed switch boots

Durable 1⁄4" Lexan Window

Durable gasket seal



IS RATING:

Built to Intrinsically Safe Design (Class 1, Division 1, Group A, B, C and D) Switch Voltage <7vdc, Switch Current .7ma

ECCN #EAR99, Schedule B #9029.10.8000

HS 84139190



Each pump section monitors the total strokes and strokes per minute (SPM). Each counter section has 1 micro controller, pic12f683 and 2 LCD display drivers PCF8577cp for each pump displayed. Compare this to other digital types that may have up to 20 or more parts needed to perform the same functions.

After 5 minutes of inactivity the pump section will go to standby. The count is held in memory, even during standby. As soon as the counter detects a stroke the LCD’s will power up and the count and strokes per minute will resume. The rate display is updated with every stroke. This saves battery life. Our rate meter uses 4 AA lithium/Duracell batteries and allows you to replace them in the field saving you expensive replacement battery pack cost and down time.
